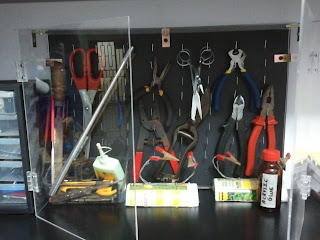

DIY Pegboard with Acrylic Cover
Step 1: Find a sturdy piece of material (eg. plywood, styrofoam, etc.)
Step 2: Drill evenly spaced holes
Step 3: Create the pegs from wires as shown
Step 4: Tape the end of the peg to the back of the board to secure it
Step 5:Add panels of acrylic sheet by using brackets and hinges
Step 6: Put in the tools
-=End=-
...Read more!...
Arduino Robot - Quadruped - body kinematics tests
This is a quadruped robot in prototyping using seeeduino mega, 12 HXT900 hobby micro servos, 3.7V lipo battery. Materials used are all plywood secured with small bolts and nuts. Programmed with Processing and Arduino IDE.
The first clip shows the horizontal movement of the body and the corresponding reaction angles of the legs.
The second clip includes both the horizontal and vertical movement of the body and the corresponding reaction angles of the legs.
3.7V lipo battery is used to power the servos and the seeeduino mega runs off the power from USB.
Will be working on the walking gait soon.. when i have time..
Visit http://retardokiddo.blogspot.com/ for more projects and future updates!
...Read more!...
Arduino / Processing ADXL330 accelerometer
Visit http://arduinotutorials.blogspot.com/ for more arduino and processing tutorials.
Also available on http://www.instructables.com/id/Arduino-Processing-ADXL330-accelerometer/
...Read more!...
MATLAB/Simulink - Simple Pendulum
Pendulum's equation of motion done in Simulink using ode45 solver. Calculated angle and corresponding x and y coordinates of the pendulum mass are exported to MATLAB workspace and plotted accordingly with timer object. Video shown is accelerated version of 40seconds duration.
...Read more!...
